Fordge
Fordge Fittings
Forged fittings provide excellent tensile strength, durability, and resistance to corrosion and rust. Manufactured from high-quality materials, they are available in various sizes and designs to meet client specifications. We offer these products to our valued customers at competitive prices.

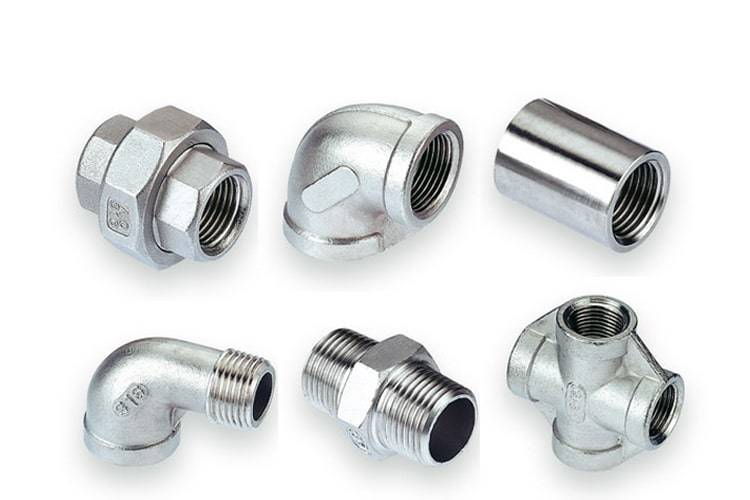

Stainless Steel Fordge Fittings
| Range | 15 NB UP TO 100 NB IN 2000 LBS, 3000 LBS, 6000 LBS & 9000 LBS, 150 LBS, 250 LBS. |
|---|---|
| Form | Socket Weld Fittings: Elbow 90 Deg, Cross, Tee, Elbow 45 Deg, Coupling, Half Coupling & End Cap. |
| Stainless Steel | ASTM / ASME SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347H. |
| Duplex Steel | ASTM / ASME SA 182 F 44, F 45, F51, F53, F55, F60. |

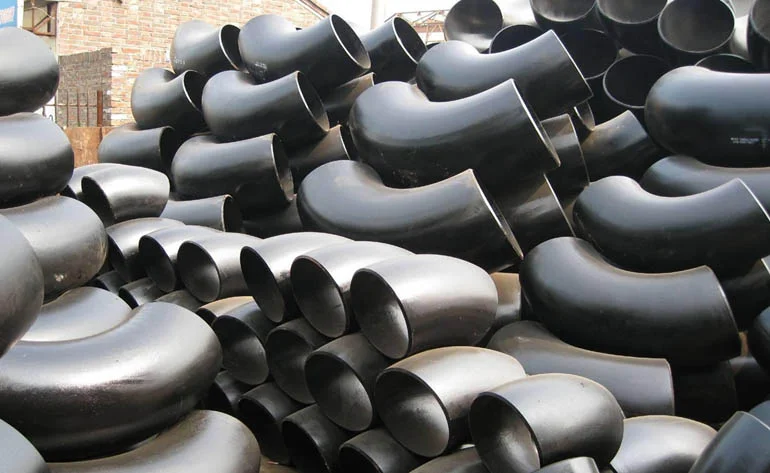

Carbon & Alloy Steel Fordge Fittings
| Range | 15 NB UP TO 100 NB IN 2000 LBS, 3000 LBS, 6000 LBS & 9000 LBS, 150 LBS, 250 LBS. |
|---|---|
| Form | Socket Weld Fittings: Elbow 90 Deg, Cross, Tee, Elbow 45 Deg, Coupling, Half Coupling & End Cap. |
| Carbon Steel | ASTM / ASME A105, ASTM / ASME A 350 LF 2. |
| Alloy Steel | ASTM / ASME A 182 GR F5, F9, F11, F12, F22, F91. |

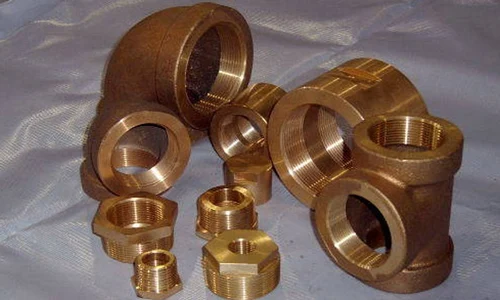

Nickel & Copper Alloy
| Range | 15 NB to 100 NB available in 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS, 150 LBS, and 250 LBS. |
|---|---|
| Form | Socket weld fittings including 90-degree elbow, cross, tee, 45-degree elbow, coupling, half coupling, and end cap. |
| Nickel Alloy | ASTM/ASME SB 564 UNS 2200 (Nickel 200), UNS 4400 (Monel 400), UNS 8825 (Inconel 825), UNS 6600 (Inconel 600), UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C 276), ASTM/ASME SB 160 UNS 2201 (Nickel 201), ASTM/ASME SB 472 UNS 8020 (Alloy 20/20 CB 3). |
| Copper Alloy | ASTM/ASME SB 61 UNS C 92200, ASTM/ASME SB 62 UNS C 83600, ASTM/ASME SB 151 UNS 70600, 71500 (Cu-Ni 90/10), C 70600 (Cu-Ni 70/30), ASTM/ASME SB 152 UNS C 10100, C 10200, C 10300, C 10800, C 12000, C 12200. |

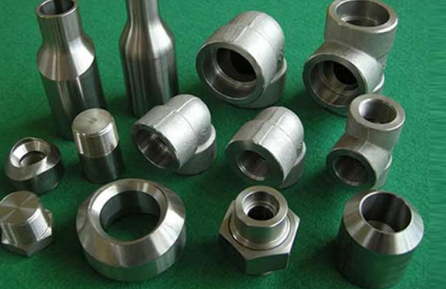

Hastelloy
| Hastelloy Grades | C-22, C-276, C-2000. |
|---|---|
| Hastelloy Fittings | Union Coupling (Full & Half), Cross, Forged Elbow, Hex Nipple, Plug, Bushing, Boss, Insert, Adapter, Socket, Forged Tee, Olets (Weldolet, Sockolet, Elbowlet, Thredolet, Nipolet, Latrolet, Sweepolet). |

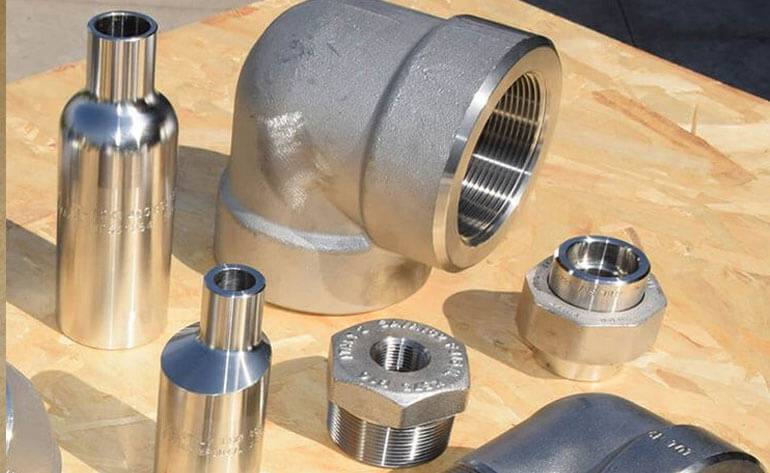

Inconel
| Inconel Grades | 600, 601, 625, 625LCF, 686, 718, 800, 825, X-750. |
|---|---|
| Standard | ASTM / ASME SB 564. |
| Fitting Types | Elbows (90° & 45°), Tees (Equal & Reducing), Unions, Crosses, Couplings (Full & Half), Reducing Sockets, Caps, Plugs (Hex & Square), Nipples (Hex & Reducing), Bushings, Olets (Sockolet, Weldolet, Thredolet, Elbolet). |

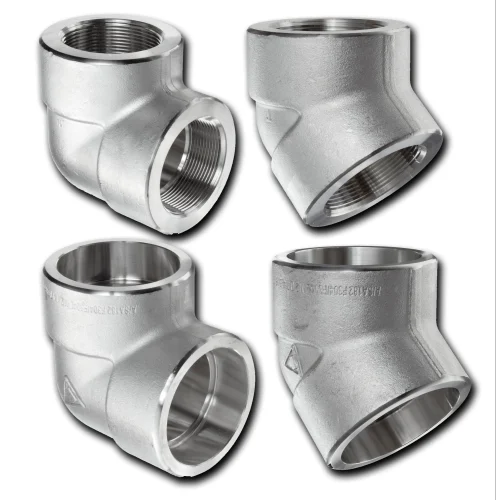

Monel
| Monel Grades | 400, K500. |
|---|---|
| Fitting Types | Elbows, Tees (Equal & Unequal), Reducers (Concentric & Eccentric), Couplings (Full, Half & Reducing), Caps, Crosses, Unions, Bushings (Hex, Reducing, Flash), Plugs, Nipples & Swage Nipples, Reducer Inserts, Bosses, Laterals, Street Elbows, Branch Connections (Weldolets, Thredolets, Sockolets, Flexolets, Latrolets, Elbolets, Sweepolets, Insert Weldolets, Nippolets, Brazolets, Coupolets). |

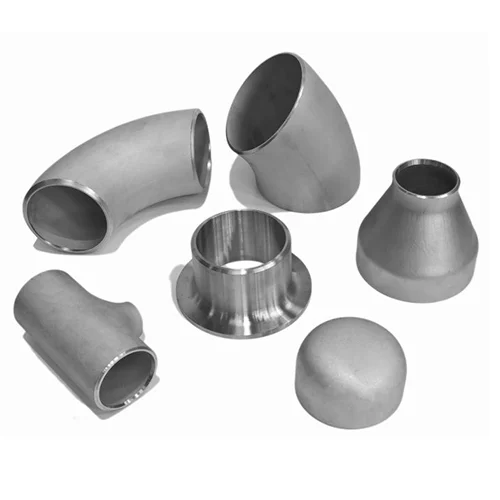

Titanium
| Titanium Grades | Grade 1, Grade 2, Grade 3, Grade 4, Grade 5, Grade 7, Grade 9, Grade 23. |
|---|---|
| Dimensional Range | Nominal Bore (NB): 1/2" to 4". |
| Component Types |
Unions: Titanium Unions Couplings: Full Couplings, Half Couplings, Reducing Couplings Crosses: Titanium Cross Fittings Elbows: Forged Titanium Elbows (Standard and Custom) Nipples: Hex and Swage Nipples Plugs: Titanium Plugs (Hex & Standard Variants) Bushings: Reducing and Hex Bushings Bosses: Titanium Boss Fittings Inserts: Titanium Inserts for Critical Applications Adapters: Threaded and Socket Adapters Sockets: Precision Titanium Sockets Tees: Forged Equal and Reducing Tees Olets: Branch Connection Fittings Including: Weldolets, Sockolets, Elbowlets, Thredolets, Nipolets, Latrolets, Sweepolets. |

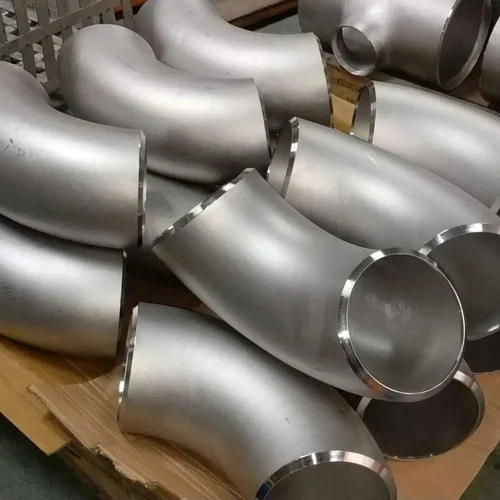

Aluminum
| Aluminum Grades |
Series 1000 (Pure Aluminum) Series 2000 (Al-Copper Alloys) Series 3000 (Al-Manganese Alloys) Series 5000 (Al-Magnesium Alloys) Series 6000 (Al-Magnesium-Silicon Alloys) Series 7000 (Al-Zinc Alloys). |
|---|
