Stainless Steel

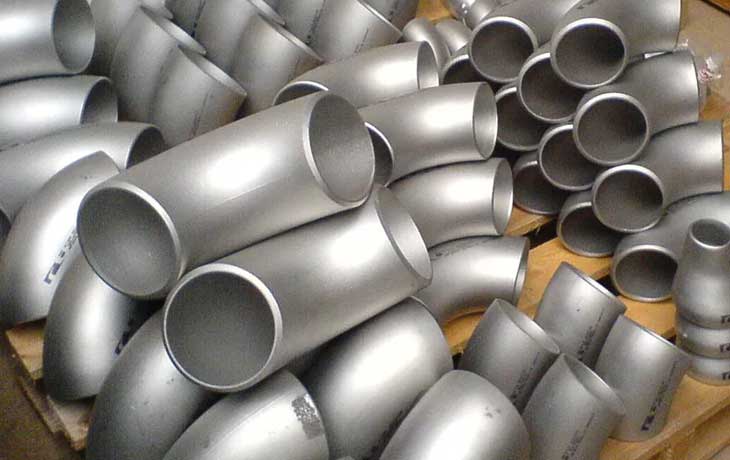

Stainless Steel Pipe Fittings
| Specification | ASTM A182 / A403 & ASME SA182 / SA403 |
|---|---|
| Grades | 201, 202, 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L |
| Stainless Steel Pipe Fittings Type | Seamless / Welded / Fabricated Buttweld Stainless Steel Pipe Fittings High Pressure Forged Stainless Steel Pipe Fittings Stainless Steel Flanges |
| Buttweld Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Range | ½” NB to 48″ NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |

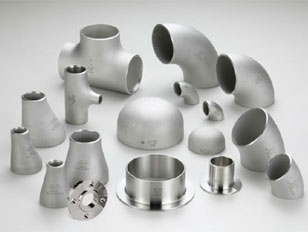

Stainless Steel 201/202 Pipe Fittings
| Specification | ASTM A182 / A403 & ASME SA182 / SA403 |
|---|---|
| Type | Seamless / Welded / Fabricated |
| Variants | 201 (1% Ni), 202 (4% Ni) |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Range | ½”NB to 48”NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |

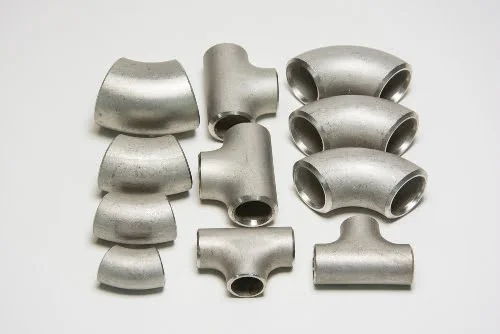

Stainless Steel 304/304L Pipe Fittings
| Specification | ASTM A182 / A403 & ASME SA182 / SA403 |
|---|---|
| Type | Seamless / Welded / Fabricated |
| Variants | 304, 304L, 304H, 304LN |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Range | ½”NB to 48”NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |

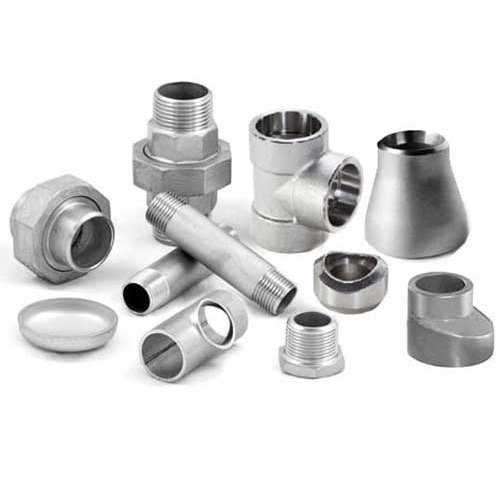

Stainless Steel 310S Pipe Fitting
| Specification | ASTM A182 / A403 & ASME SA182 / SA403 |
|---|---|
| Type | Seamless / Welded / Fabricated |
| Variants | 310, 310S |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Range | ½”NB to 48”NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
Stainless Steel 316/316L Pipe Fittings
| Specification | ASTM A182 / A403 & ASME SA182 / SA403 |
|---|---|
| Type | Seamless / Welded / Fabricated |
| Variants | 310, 310S |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Range | ½”NB to 48”NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |

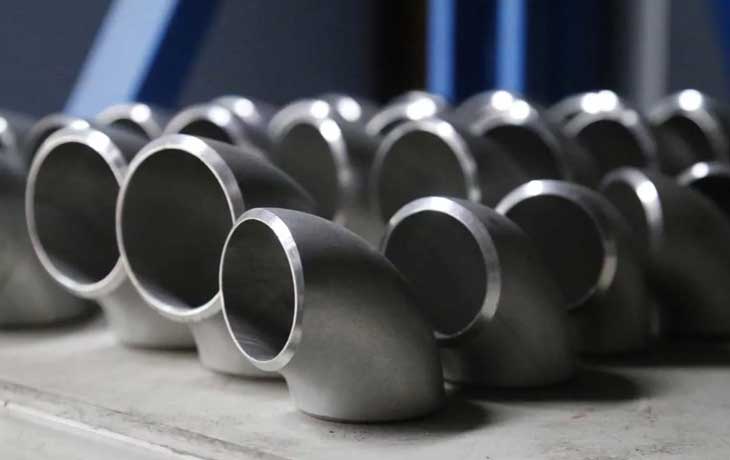

Stainless Steel 317L Pipe Fittings
| Specification | ASTM A182 / A403 & ASME SA182 / SA403 |
|---|---|
| Type | Seamless / Welded / Fabricated |
| Variants | 317L |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Range | ½”NB to 48”NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
Stainless Steel 321/321H Pipe Fittings
| Specification | ASTM A182 / A403 & ASME SA182 / SA403 |
|---|---|
| Type | Seamless / Welded / Fabricated |
| Variants | 321, 321H |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Range | ½”NB to 48”NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |

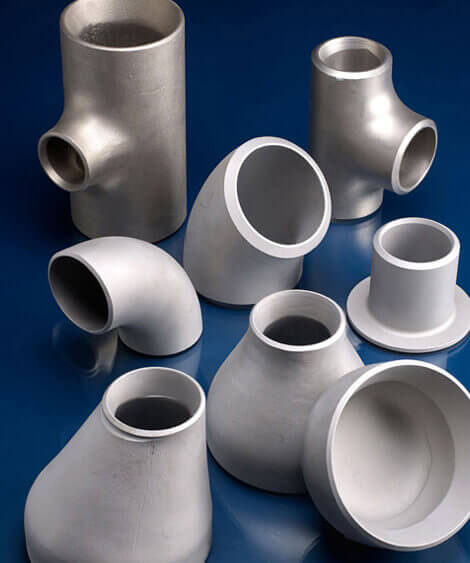

Stainless Steel 347/347H Pipe Fittings
| Specification | ASTM A182 / A403 & ASME SA182 / SA403 |
|---|---|
| Type | Seamless / Welded / Fabricated |
| Variants | 321, 321H |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Range | ½”NB to 48”NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
